TB V237
TB-V237 Series is projected window vent

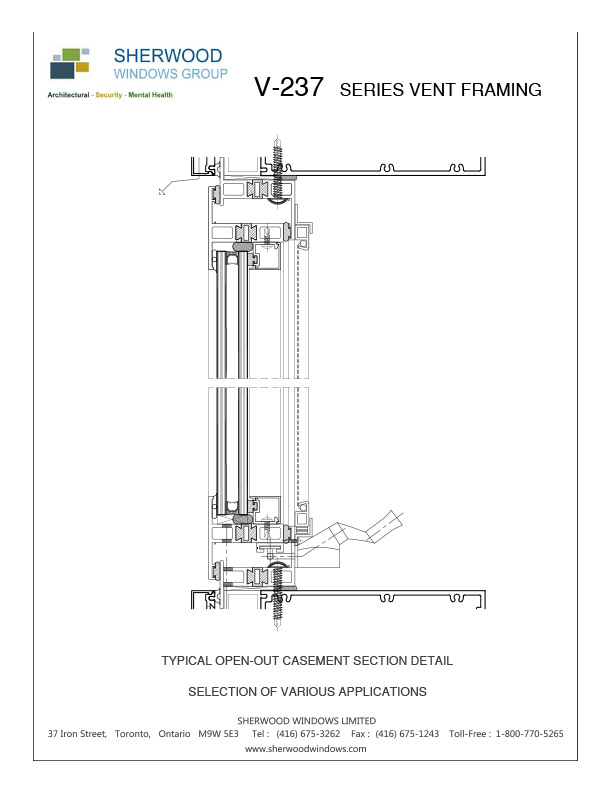

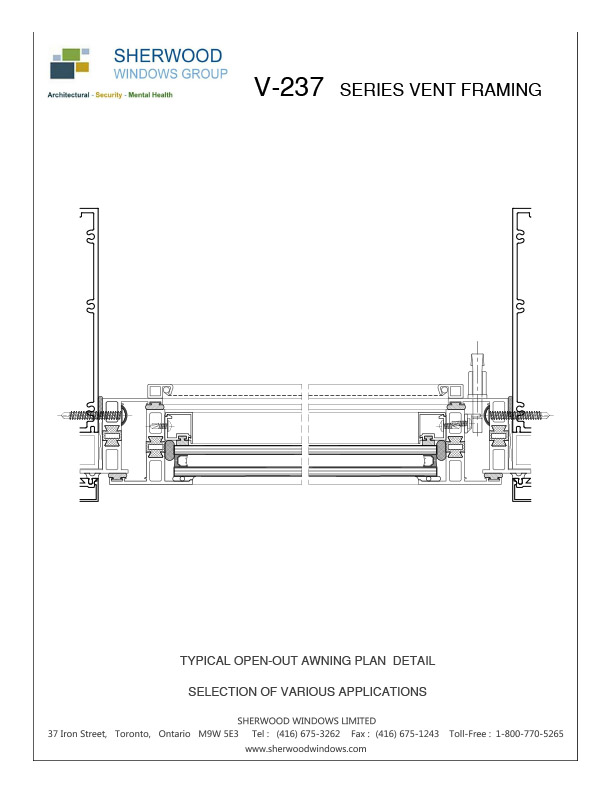

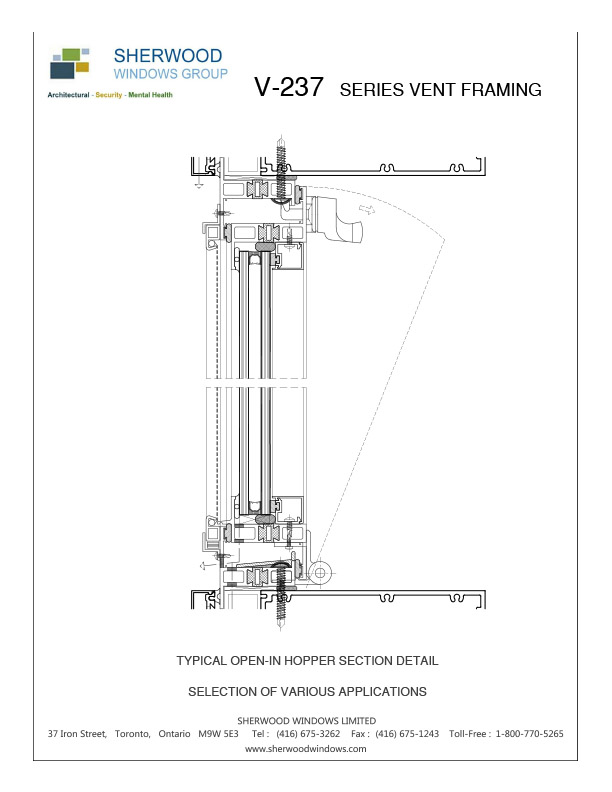

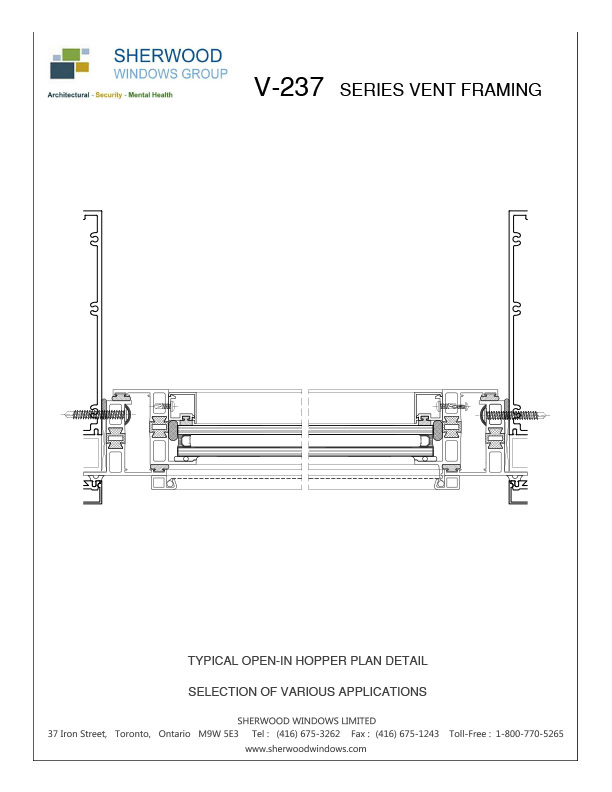

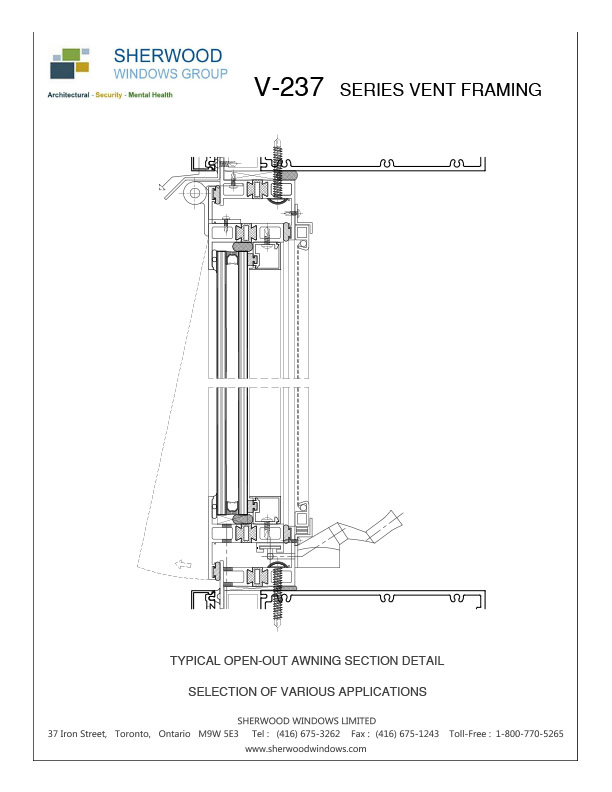

- Available as Hopper, Awning and Casement style vents
- Compatible with window and curtain wall systems
- Mitered frame joinery with crimped corners
- Exterior wet gaskets, Interior dry gaskets
- Accommodates from ¼” (6 mm) to 7/8″ (22 mm) infill
- Fully pressure-equalized rain screen design
- Architectural anodized and painted finishes
- Weep drainage system drains moisture and condensation to the exterior
- Architectural anodized finishes and applied coatings
- Made of 6063 T6 extruded aluminum alloy
- Exterior uses wet gaskets
- 1 – 5 year warranty as specified
- Individual glass units may be reglazed without requiring removal of the complete vent from the window/curtain wall system
- Diverse framing options available
- Tempering exceeds spec
- Options of shop glazing and field glazing allows flexibility of installation and opportunity to accelerate install schedule
- Designed to lower deflection threshold
- Lower thermal loss through system
- Higher I-values yield higher internal surface temperatures
Current certified test reports ensuring full ASTM compliance.
- ASTM E330-02
- ASTM E331-00
- ASTM E283-04
- ASTM E547-00
